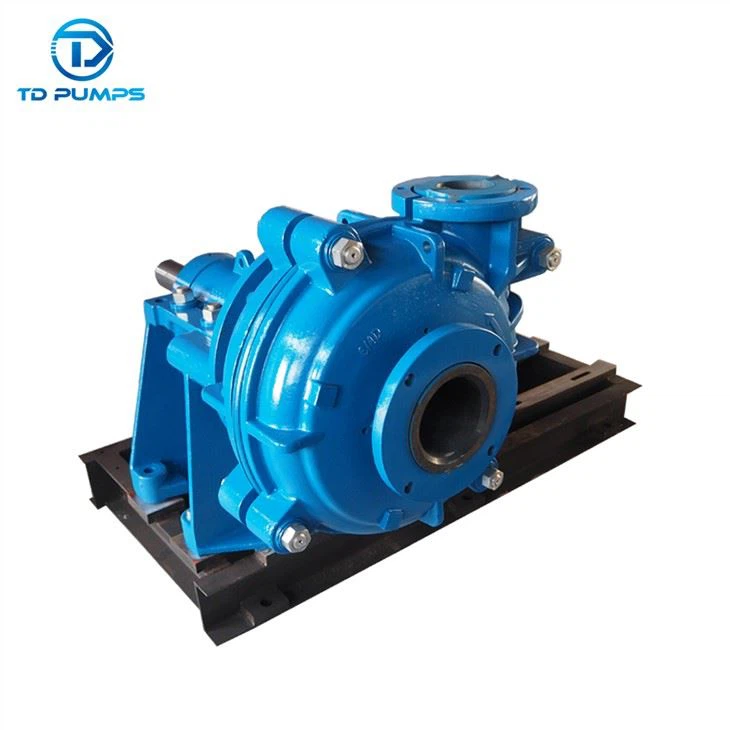

4/3C MAH Slurry Pump
Type: Centrifugal Discharge: 25-400mmAccessible particles: 10-120mmCapacity: 8-3500m³/hHead: 2-70mPower: 4-1000kw
Khoom Taw qhia
The versatile, fully lined Heavy duty MAH wear resistant centrifugal horizontal slurry pump offers a wide range of configurations allowing the pump to be tailored to the customer's specific application
| 4/3C MAH slurry twj tso kua mis | 4/3C MAH slurry twj tso kua mis | |
|
4/3C MAH slurry pump series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abrasive and high density slurry in mining and heavy industry. MAHR is a rubber lined kind,it is used for corrosive liquid. Heavy duty twj tso kua mis Lub luag haujlwm hnyav MAH lub twj tso kua mis yog tsim los ua cov twj tso kua mis txuas ntxiv ntawm cov khoom siv abrasive / ntom ntom hauv cov txheej txheem los ntawm hydrocyclone pub rau regrind, flotation thiab tailings nyob rau hauv cov ntxhia ua cov nroj tsuag nrog rau lwm yam kev siv. • Ball mill discharge • Bottom/fly ash, lime grinding
• Coal • Coarse sand • Coarse tailings
• Dredging • FGD
• Fine tailings • Flotation
• Heavy media • Minerals concentrate
• Mineral sands • Ni acid slurry
• Oil sands • Phosphoric acid
• Phosphate matrix • Process chemical
• Pulp and paper • Rod mill discharge
• SAG mill discharge • Wet crushers
|
Tsim nta thiab cov txiaj ntsig
• Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime
• Ductile iron fully lined casing provides durability, strength, safety, and long service life
• Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs
• Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs
• Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life
• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
• Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
• Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime • Optional dry running shaft seal reduces or eliminates flush water requirements
• Effective expeller prolongs packing life while reducing or eliminating flush water requirement
• Now featuring throatbush and impeller combination designed to enhance efficiency and improve wear performance
• Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized pump
|
Cov ntawv nyeem ntxiv mus ntawm no.
4/3C MAH slurry twj tso kua mis
